FIGURE

Fig. 4

ID

ZDB-FIG-200506-5

Publication

Guo et al., 2020 - Function of Arl4aa in the Initiation of Hematopoiesis in Zebrafish by Maintaining Golgi Complex Integrity in Hemogenic Endothelium

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

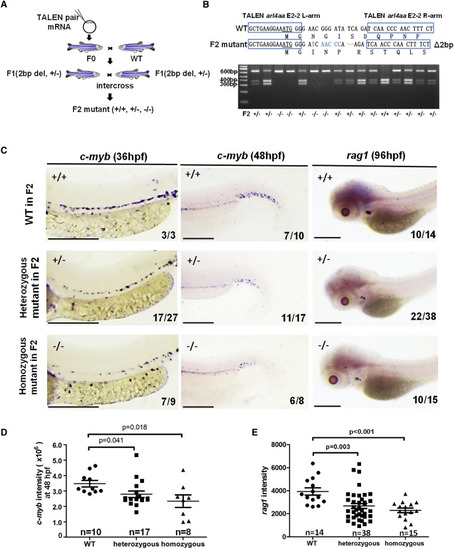

Knockout of Zebrafish arl4aa Perturbed Definitive Hematopoiesis in F2 Mutants (A) Strategy of raising F2 mutant embryos. (B) DNA sequencing and genotyping of F2 mutant embryos containing 2-bp deletion and 6-bp substitutions. The amino acids are labeled under the DNA sequence. (C) Expression of c-myb in F2 embryos (upper, WT; middle, heterozygous; lower, homozygous) at 36 (left panel) and 48 hpf (middle panel) and of rag1 at 96 hpf (right panel). (D and E) Intensity of c-myb expression in CHT at 48 hpf (D) and rag1 expression in thymus at 96 hpf (E) as measured by ImageJ software. Data are shown by means ± SEM; n and p values are indicated in (D) and (E). Scale bars, 250 μm (in WISH). The numbers in each WISH showed the numbers of embryos with typical gene expression as shown over the total number of embryos injected in each group.

Expression Data

Genes:	myb rag1
Fish:	WT arl4aa^hku1/hku1 arl4aa^hku1/+
Anatomical Terms:	thymus ventral wall of dorsal aorta
Stage Range:	Prim-25 to Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	arl4aa^hku1/hku1 arl4aa^hku1/+
Observed In:	definitive hemopoiesis thymus ventral wall of dorsal aorta
Stage Range:	Prim-25 to Day 4

Phenotype Detail
