Figure 5

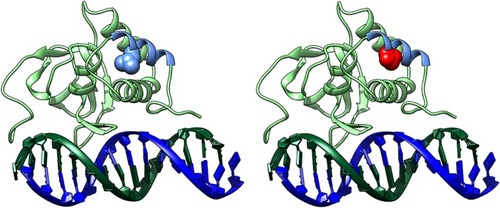

(A) Wild‐type (WT) SMAD9 MH1 domain (light green ribbon with helix‐1 in light blue) binding the DNA helix (dark blue/dark green). L22 is shown in blue space filling. (B) L22P, shown in red space filling, is predicted to severely disrupt the structure of the MH1 domain. Supplemental Movie S2 in File S1: 3‐dimensional rotating image.
