ZFIN ID: ZDB-FIG-191230-666
Pérez-Rius et al., 2019 - Comparison of zebrafish and mice knockouts for Megalencephalic Leukoencephalopathy proteins indicates that GlialCAM/MLC1 forms a functional unit. Orphanet journal of rare diseases   14:268 Full text @ Orphanet J Rare Dis
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Antibody:
Fish:
Anatomical Terms:
Stage: Adult
PHENOTYPE:
Fish:
Observed In:
Stage: Adult

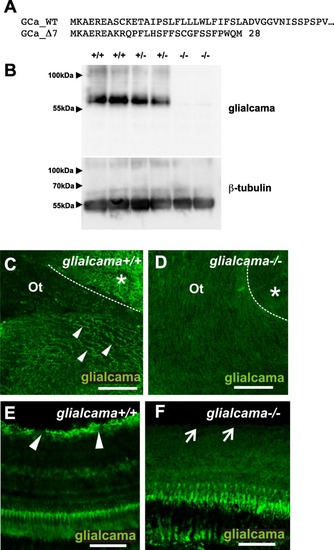

Fig. 1

Generation of a glialcama knockout line in zebrafish. a An allele with a deletion of 7 nucleotides in glialcama (Δ7, from now on −/−) was generated using a TALEN nuclease. The deletion generates an early stop codon, resulting in a protein of only 28 amino acids in lenght. b Western blot of brain extracts from adult wild-type (+/+), heterozygous (+/−) or homozygous mutant (−/−) fish for the glialcama knockout allele demonstrates the absence of the glialcama protein in the homozygous zebrafish. c glialcama expression in the optic tract (Ot) (arrowheads) and diffusely in cell bodies of the preoptic region (asterisk) of wild type fish (dotted line: optic tract/preoptic region boundary). d No glialcama immunoreactivity is observed in the optic tract or brain parenchyma of glialcama knockout fish. Dotted line: optic tract/preoptic region boundary. Asterisk: preoptic region. e glialcama immunoreactivity is observed in the inner limiting membrane of the wild type retina (arrowheads). f No glialcama immunoreactivity is observed in knockout retina. Expression observed in glialcama−/− represents autofluorescence in photoreceptors that was consistently observed, even in the case of control immunostainings with secondary antibody only. Arrows point to the inner limiting membrane. Scale bars: 60 μm (e, f); 75 μm (c, d)

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
hepacama Ab1-hepacama WT standard conditions Adult brain WB
Ab1-hepacama Adult inner limiting membrane IHC
Ab1-hepacama Adult Muller cell glial limiting end-foot IHC
Ab1-hepacama Adult optic tract IHC
Ab1-hepacama Adult preoptic area IHC
Ab1-hepacama Adult radial glial cell glial cell projection IHC
Ab1-hepacama hepacamabcn1/bcn1 standard conditions Adult Not Detected brain WB
Ab1-hepacama Adult Not Detected inner limiting membrane IHC
Ab1-hepacama Adult Not Detected Muller cell glial limiting end-foot IHC
Ab1-hepacama Adult Not Detected optic tract IHC
Ab1-hepacama Adult Not Detected preoptic area IHC
Ab1-hepacama Adult Not Detected radial glial cell glial cell projection IHC
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
hepacamabcn1/bcn1 standard conditions Adult brain hepacama expression absent, abnormal
Adult inner limiting membrane hepacama expression absent, abnormal
Adult Muller cell glial limiting end-foot hepacama expression absent, abnormal
Adult optic tract hepacama expression absent, abnormal
Adult preoptic area hepacama expression absent, abnormal
Adult radial glial cell glial cell projection hepacama expression absent, abnormal
