Fig. 3

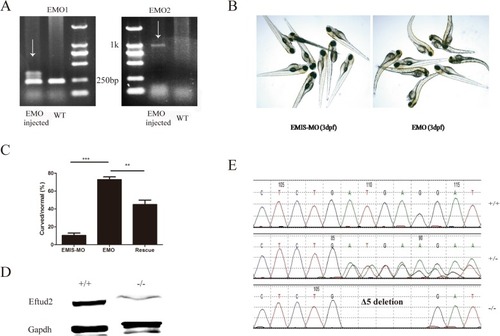

eftud2 gene knockdown and knockout in zebrafish. a PCR analysis and gel electrophoresis to identify the efficacy of an eftud2 morpholino (EMO). On the left, amplification was performed with the EMO1 primer, which resulted in a clear band in WT zebrafish and nonspecific bands in EMO-injected larvae. On the right, amplification was performed with the EMO2 primer, which produced a clear band in EMO-injected zebrafish and nothing in the WT. b Phenotypes of mutant zebrafish subjected to EMO injection and control morpholino (mismatch morpholino, EMIS-MO)-injected zebrafish at 3 dpf. c Comparison of the numbers of curved larvae among zebrafish injected with EMO, EMO together with normal EFTUD2 mRNA (rescue group), or EMIS-MO. d Western blot analysis of Eftud2 protein levels between the WT (+/+) and homozygous (−/−) mutant zebrafish at 3 dpf. e DNA sequencing of WT (+/+), heterozygous (+/−), and homozygous (−/−) mutants at 3 dpf

Expression Data

Gene:	eftud2
Fish:	WT eftud2^{fdu301/fdu301} WT + MO2-eftud2
Knockdown Reagent:	MO2-eftud2
Anatomical Term:	whole organism
Stage Range:	Long-pec to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	eftud2^{fdu301/fdu301} WT + MO2-eftud2
Knockdown Reagent:	MO2-eftud2
Observed In:	post-vent region trunk whole organism
Stage Range:	Long-pec to Protruding-mouth

Phenotype Detail
