Figure 4

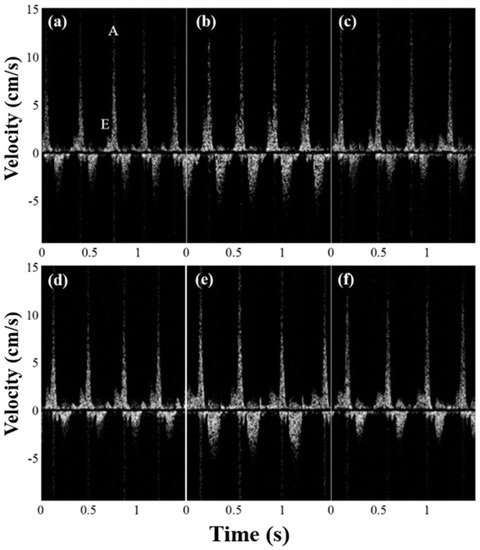

Spectral Doppler waveforms acquired from the adult zebrafish (a) one week prior to ventricular amputation and (b) 3, (c) 7, (d) 14, (e) 21, and (f) 32 days post-amputation (dpa) to monitor functional changes of the heart during regeneration. Examples of an E-flow and A-flow are indicated in Figure 4a.
