Fig. 5

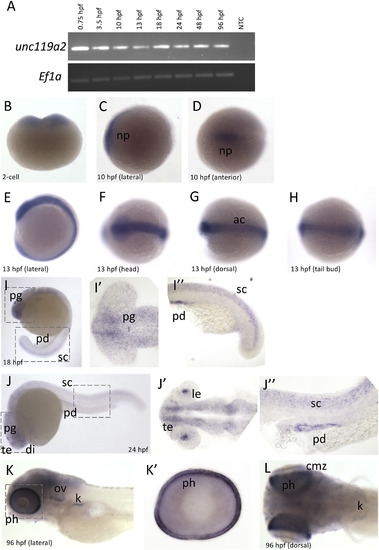

Temporal and spatial expression of zebrafish unc119a2. A. RT-PCR of unc119bat various embryonic time-points (0.75 hpf (2-cell), 3.5 hpf, 10 hpf, 13 hpf, 18 hpf, 24 hpf, 48 hpf, and 96 hpf) compared to Ef1a. B. 2-cell WISH. C-D. 10 hpf WISH. E-H. 13 hpf WISH. I. 18 hpf WISH. Boxed regions are represented in flatmounts of the head (I′) and tail (I″). J. 24 hpf WISH. Boxed regions are represented in flatmounts of the head (J′) and tail (J″). K. Lateral view of 96 hpf WISH. Boxed region is represented in eye flatmount (K′). L. Dorsal view of 96 hpf WISH embryo. Abbreviations: ac, adaxial cells; cmz, ciliary marginal zone; di: diencephalon; k, kidney; le, lens; np, neural plate; NTC, non-template control; ov, otic vesicle; pd, pronephric duct; pg, pineal gland; ph, photoreceptors; sc, spinal cord; te: telencephalon.

Expression Data

Gene:	unc119b
Fish:	WT
Anatomical Terms:	adaxial cell ciliary marginal zone diencephalon epiphysis eye photoreceptor cell head neural plate otic vesicle pronephric duct pronephros solid lens vesicle spinal cord spinal cord neural tube telencephalon whole organism
Stage Range:	2-cell to Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
