Fig. S5

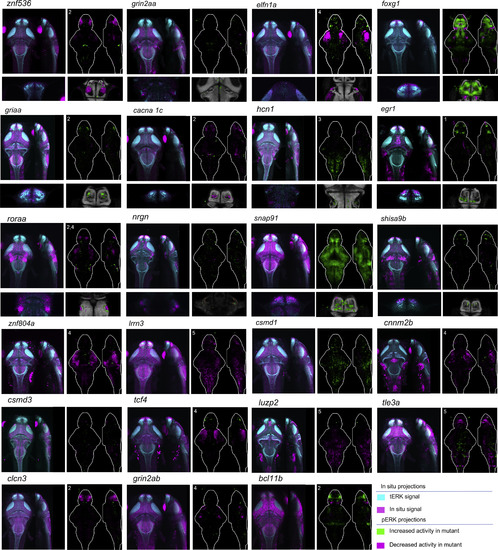

Comparison between in situ RNA Localization and Brain Activity, Related to Figure 4

Stacks of all RNA-FISH images are available on http://stackjoint.com/basic/ and are tagged as “Thyme, 2018.” Probe sequences are available on http://genepile.com/scz_gwas108. At least three brains were imaged for each probe to confirm that the presented pattern was consistent (data available upon request). Brain areadescriptions are based on the Z-Brain masks (stackjoint.com/zbrain). znf536: forebrain showed in situ and phosphorylated-Erk (pErk) brain activity signal. grin2aa: cerebellum showed in situ and activity signal. elfn1a: retinal arborization field AF7, tectum, and forebrain showed in situ and activity signal. foxg1: forebrain showed in situ and activity signal. gria1a: forebrain showed in situ and activity signal. cacna1c:cerebellum and forebrain showed in situ and activity signal. hcn1:hindbrain showed in situ and activity signal. egr1: forebrain showed in situ and activity signal. roraa: tectum and hindbrain showed in situ and activity signal. nrgn: forebrain and hypothalamic cells showed in situ and activity signal. snap91: activity signal correlated to in situ signal showing expression throughout the brain. shisa9b: forebrain showed in situ and activity signal. znf804a: activity signal correlates to in situ signal showing expression throughout the brain. lrrn3: activity signal correlated to in situ signal showing expression throughout the brain. csmd1: activity signal correlated to in situ signal showing expression throughout the brain. cnnm2b: strong in situ signal in forebrain and torus semicircularis did not correlate to activity signal in tectum, retinal arborization field AF7, and hindbrain. csmd3: strong in situ signal in retinal arborization field AF7, tectum, and hindbrain did not correlate to diffuse and minimal activity signal. tcf4: strong in situ signal in forebrain and midbrain did not correlate to strong activity signal in tectum. luzp2:Strong in situ signal in tectum and cerebellum did not correlate to activity signal in hindbrain. tle3a: strong in situ signal in forebrain and tectum did not correlate to strong activity signal primarily in hindbrain. clcn3: strong in situ signal throughout the brain did not correlate to activity signal mainly in forebrain. grin2ab: strong in situsignal throughout the brain did not correlate to activity signal primarily in the tectum, retinal arborization field af7, and hindbrain. bcl11b:strong in situ signal throughout the brain did not correlate to activity signal in forebrain and cerebellum.
