Fig. 8

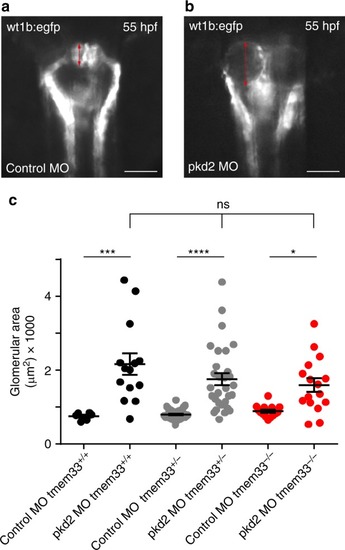

Tmem33 does not influence renal cystogenesis in zebrafish. a Epifluorescence image of zebrafish glomeruli. Control morpholino oligomer injected in Tg(wt1b:EGFP)^li1. b Morpholino knockdown of pkd2 increases glomerular area in Tg(wt1b:EGFP)^li1 (red arrows). Scale bars: 50 µm. cPkd2-dependent renal cystogenesis was unaffected by the loss of tmem33 in zebrafish tmem33^sh443 mutants (tmem33^+/+ black dots, tmem33^+/- gray dots and tmem33^−/− red dots). Each data point refers to a single glomerulus. Values are means ± SEM overlaid with dot plots. One way ANOVA with Turkey’s post hoc *p < 0.05, ***p < 0.001, ****p < 0.0001, F = 15.44, DF = 119, 2 repeats. Source data are provided as a Source Data file

Expression Data

Gene:	EGFP
Fish:	li1Tg li1Tg + MO3-pkd2
Knockdown Reagent:	MO3-pkd2
Anatomical Term:	pronephric glomerulus
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	li1Tg + MO3-pkd2 tmem33^sh443/+; li1Tg tmem33^sh443/sh443; li1Tg tmem33^sh443/+; li1Tg + MO3-pkd2 tmem33^sh443/sh443; li1Tg + MO3-pkd2
Knockdown Reagent:	MO3-pkd2
Observed In:	pronephric glomerulus
Stage:	Long-pec

Phenotype Detail
