ZFIN ID: ZDB-FIG-190716-2
Han et al., 2019 - Vitamin D Stimulates Cardiomyocyte Proliferation and Controls Organ Size and Regeneration in Zebrafish. Developmental Cell   48(6):853-863.e5 Full text @ Dev. Cell
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Antibody:
Fish:
Conditions:
Anatomical Terms:
Stage Range: Protruding-mouth to Day 4
PHENOTYPE:
Fish:
Conditions:
Observed In:
Stage Range: Protruding-mouth to Adult

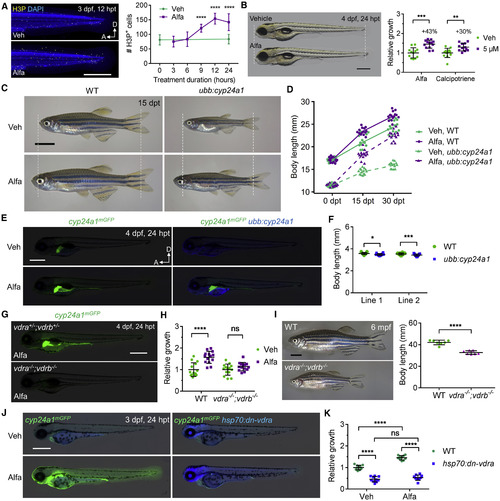

Fig. 2

Vitamin D Signaling Enhances Organismal Size

(A) MIP images and quantification of H3P staining of 3 dpf embryos. hpt, hours post-treatment; H3P, phospho-Histone H3. Mean ± SD, Mann-Whitney test and Student's t test. ∗∗∗∗p < 0.0001. n = 11–13. Scale bar, 500 μm.

(B) Example and quantification of 4 dpf zebrafish growth. Mean ± SD, Mann-Whitney test and Student’s t test. ∗∗p < 0.01; ∗∗∗p < 0.001. n = 12-14. Scale bar, 500 μm.

(C) Growth and rescue of 2 mpf juvenile wild-type (WT) and ubb:cyp24a1 zebrafish. Scale bar, 4 mm.

(D) Quantification of zebrafish length before and after treatment. Mean ± SD. n = 14–15.

(E) mGFP and TagBFP expression in 4 dpf embryos treated with vehicle or 10 nM Alfa. Scale bar, 500 μm.

(F) Quantified body length of two independent ubb:cyp24a1 lines and WT siblings at 4 dpf. Mean ± SD, Mann-Whitney test. p < 0.05. n = 14–23.

(G) cyp24a1mGFP expression in 1 μM Alfa-treated embryos.

(H) Quantification of relative growth of 4 dpf embryos treated with vehicle or Alfa for 24 h. Mean ± SD, Student’s t test. n = 13.

(I) Representative images and body length quantification of 6 mpf zebrafish. mpf, months post-fertilization. Mean ± SD, Student's t test. n = 7. Scale bar, 5 mm.

(J) mGFP and TagBFP expression of 3 dpf embryos after a single heat-shock and 24-h drug treatment. Scale bar, 500 μm.

(K) Quantified relative growth of 4 dpf embryos after a heat shock and 24-h drug treatment. Mean ± SD, Student’s t test. n = 10.

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
GFP cyp24a1pd272Tg/+ control Protruding-mouth heart IFL
Day 4 heart IFL
cyp24a1pd272Tg/+ chemical treatment by environment: alfacalcidol Protruding-mouth heart IFL
Protruding-mouth liver IFL
Protruding-mouth whole organism IFL
Day 4 heart IFL
Day 4 liver IFL
cyp24a1pd272Tg/+; pd273Tg/+ control Day 4 Not Detected heart IFL
cyp24a1pd272Tg/+; pd273Tg/+ chemical treatment by environment: alfacalcidol Day 4 heart IFL
Day 4 liver IFL
cyp24a1pd272Tg/+; pd276Tg/+ heat shock Protruding-mouth heart IFL
cyp24a1pd272Tg/+; pd276Tg/+ heat shock, chemical treatment by environment: alfacalcidol Protruding-mouth heart IFL
Protruding-mouth liver IFL
vdrapd307/pd307; vdrbpd308/pd308; cyp24a1pd272Tg/+ chemical treatment by environment: alfacalcidol Day 4 Not Detected heart IFL
Day 4 Not Detected whole organism IFL
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab19-h3 IHC WT control Protruding-mouth trunk
IHC WT chemical treatment by environment: alfacalcidol Protruding-mouth trunk
Phenotype Details
Fish Conditions Stage Phenotype
WT chemical treatment by environment: alfacalcidol Protruding-mouth trunk ab19-h3 labeling increased amount, abnormal
Protruding-mouth trunk cell population proliferation increased occurrence, abnormal
Protruding-mouth - Day 4 growth increased rate, abnormal
Day 4 growth increased rate, abnormal
Day 4 whole organism increased length, abnormal
Adult growth increased rate, abnormal
Adult whole organism increased length, abnormal
WT chemical treatment by environment: calcipotriol Protruding-mouth - Day 4 growth increased rate, abnormal
Day 4 whole organism increased length, abnormal
cyp24a1pd272Tg/+ chemical treatment by environment: alfacalcidol Protruding-mouth heart GFP expression increased amount, abnormal
Protruding-mouth liver GFP expression increased amount, abnormal
Protruding-mouth whole organism GFP expression increased amount, abnormal
Day 4 heart GFP expression increased amount, abnormal
Day 4 liver GFP expression increased amount, abnormal
cyp24a1pd272Tg/+; pd273Tg/+ control Day 4 heart GFP expression absent, abnormal
cyp24a1pd272Tg/+; pd273Tg/+ chemical treatment by environment: alfacalcidol Day 4 heart GFP expression amount, ameliorated
Day 4 liver GFP expression amount, ameliorated
cyp24a1pd272Tg/+; pd276Tg/+ heat shock Protruding-mouth heart GFP expression decreased amount, abnormal
cyp24a1pd272Tg/+; pd276Tg/+ heat shock, chemical treatment by environment: alfacalcidol Protruding-mouth heart GFP expression amount, ameliorated
Protruding-mouth liver GFP expression amount, ameliorated
pd273Tg/+ control Adult growth decreased rate, abnormal
Adult whole organism decreased length, abnormal
pd273Tg/+ chemical treatment by environment: alfacalcidol Adult growth rate, ameliorated
Adult whole organism length, ameliorated
pd274Tg/+ control Adult growth decreased rate, abnormal
Adult whole organism decreased length, abnormal
pd274Tg/+ chemical treatment by environment: alfacalcidol Adult growth rate, ameliorated
Adult whole organism length, ameliorated
pd276Tg/+ heat shock Protruding-mouth growth decreased rate, abnormal
pd276Tg/+ heat shock, chemical treatment by environment: alfacalcidol Protruding-mouth growth decreased rate, abnormal
vdrapd307/pd307 ; vdrbpd308/pd308 control Adult whole organism decreased length, abnormal
vdrapd307/pd307 ; vdrbpd308/pd308 chemical treatment by environment: alfacalcidol Day 4 growth rate, ameliorated
Day 4 whole organism length, ameliorated
vdrapd307/pd307; vdrbpd308/pd308; cyp24a1pd272Tg/+ chemical treatment by environment: alfacalcidol Day 4 heart GFP expression absent, abnormal
Day 4 whole organism GFP expression absent, abnormal
