FIGURE

Fig. 7

ID

ZDB-FIG-190618-68

Publication

James et al., 2019 - Intestinal dysmotility in a zebrafish (Danio rerio) shank3a;shank3b mutant model of autism

Other Figures

All Figure Page

Back to All Figure Page

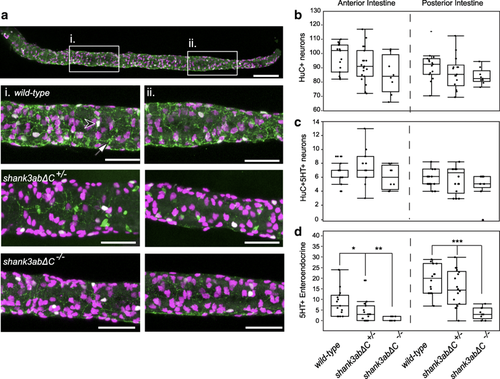

Fig. 7

Shank3abΔC mutants have a reduction in enteroendocrine cells. a Anterior (i.) and posterior (ii.) regions were sampled to quantify the number of enteric neurons (HuC, magenta), serotonin enteric neurons (HuC+/5-HT+, white, black arrowhead), and enteroendocrine cells (5-HT+, green, white arrow). Shank3abΔC mutants did not show a significant decrease in either b enteric neurons or c serotonin positive enteric neurons. d Serotonin positive enteroendocrine cells were significantly decreased in shank3abΔC mutants for both anterior and posterior regions. WT, n = 15;shank3abΔC ^+/−, n = 19; shank3abΔC ^−/−, n = 9. Scale bars represent 100 μm (a) and 50 μm (i, ii)

Expression Data

Antibodies:	Ab1-elavl Ab2-serotonin
Fish:	AB shank3a^umi101/+; shank3b^umi102/+ (AB) shank3a^{umi101/umi101}; shank3b^{umi102/umi102} (AB)
Anatomical Terms:	enteric nervous system serotonergic neuron enteric neuron enteroendocrine cell
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	shank3a^umi101/+; shank3b^umi102/+ (AB) shank3a^{umi101/umi101}; shank3b^{umi102/umi102} (AB)
Observed In:	enteroendocrine cell intestine serotonergic neuron
Stage:	Days 7-13

Phenotype Detail
