FIGURE

Fig. 3

ID

ZDB-FIG-181130-22

Publication

Elbialy et al., 2018 - A Zebrafish Acromegaly Model Elevates DNA Damage and Impairs DNA Repair Pathways

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

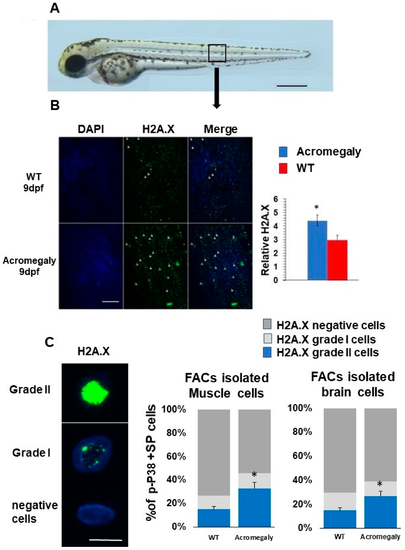

Increased DNA damage in Acromegaly zebrafish larvae and adult. (A) A zebrafish larva showing the area for taking the image for H2A.X quantification (black box). Bar = 500 µm. (B) Representative H2A.X whole-mount immunostaining and quantification in acromegaly and WT zebrafish (9 dpf) showing a significant increase in the number of H2A.X stained cell nuclei in the acromegaly zebrafish model. Arrows in panel B show H2A.X stained cell nuclei. Bar = 40 µM. Quantification was performed using Fiji software. (C) Representative H2A.X grade I, grade II, and negatively stained cells. Bar = 5 µM (left). Quantification of H2A.X positive and negative stained live isolated cells from the muscle and brain of acromegaly and WT (one-year-old) fish (left). Data are expressed as the mean ± SE (n = 3). Statistical difference (t-test, P < 0.05) is denoted by an asterisk.

Expression Data

Antibody:	Ab11-h2afx
Fish:	WT kj39Tg
Anatomical Term:	muscle
Stage:	Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	kj39Tg
Observed In:	histone H2AXS139 kinase activity muscle
Stage:	Days 7-13

Phenotype Detail
