Fig. S2

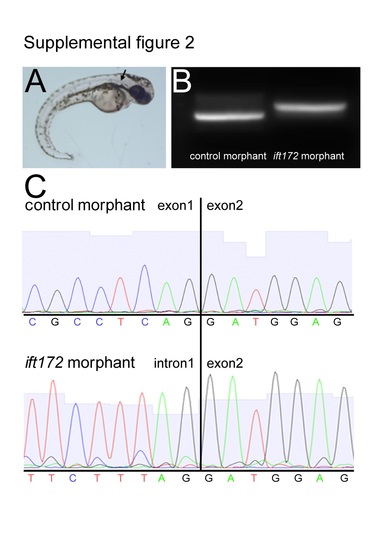

(A) Phenotype of ift172 MO fish, arrow points at kidney cyst. (B) Larger ift172 PCR product using ift172 cDNA as a template in ift172 morphant. (C) Sequence analysis reveals that injection of ift172 MO leads to retention of intron 1 in cDNA of morphants, leading to a predicted 16 amino acids peptide instead of the 1745 amino acids of the original protein.
