Fig. 6

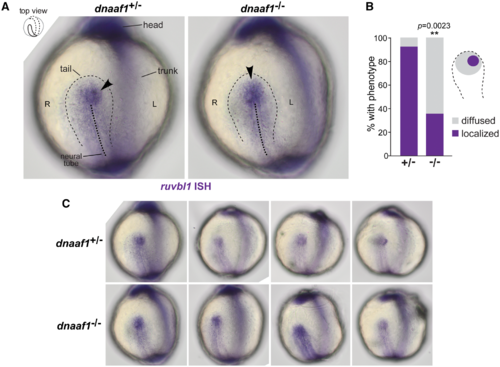

DNAAF1-dependent left-sided asymmetric expression of RUVBL1 at the zebrafish Kupffer?s vesicle: (A) in situ hybridization (ISH) of Ruvbl1 expression at Kupffer?s vesicle (thin dashed black line) in wild-type heterozygous dnaaf1^+/? and mutant homozygous dnaaf1^?/? zebrafish embryos, at the 5 to 9 somite stages, visualized from dorsal views as indicated in the top left inset. Localized expression is indicated by arrowheads, and the mid-line of the notochord is shown by the thick dashed black line. Left (L) and right (R) sides are indicated. (B) Bar graph shows a significantly higher proportion of wild-type zebrafish (+/?) have left-sided localisation of ruvbl1 when compared to diffused central localization in mutant (?/?) embryos (P?=?0.0023, unpaired Student?s t-test). (C) Additional examples of ruvbl1 expression at Kupffer?s vesicle in unaffected dnaaf1^+/^? heterozygous and dnaaf1^?/? affected mutant zebrafish embryos.

Expression Data

Gene:	ruvbl1
Fish:	dnaaf1^{hu255H/hu255H} dnaaf1^hu255H/+
Anatomical Term:	Kupffer's vesicle
Stage:	5-9 somites
