ZFIN ID: ZDB-FIG-180426-2
Ji et al., 2017 - Involvement of Lypge in the formation of eye and pineal gland in zebrafish. Gene   642:491-497 Full text @ Gene
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Knockdown Reagent:
Stage: Prim-5
PHENOTYPE:
Fish:
Knockdown Reagent:
Observed In:
Stage: Prim-5

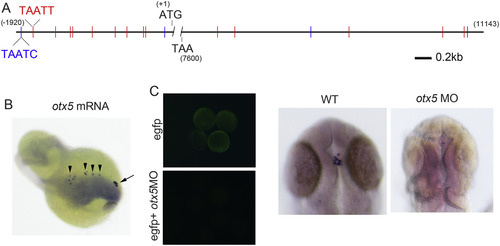

Fig. 3 otx5 regulates expression of lypge. (A) Two kinds of otx5 binding sequence “TAATC” and “TAATT” are marked by blue and red, respectively, in promoter (− 1920 to − 1) and downstream sequence (7601 to 11,143) of lypge. (B) Ectopic expression (arrowhead) is induced in otx5 overexpressed embryos at 24 hpf, pineal gland is indicated by arrow. (C) Left: examination of otx5 MO efficiency, expression of EGFP fluorescence in embryos at 10 hpf is absent from embryos co-injected MO-binding site + EGFP mRNA with otx5 MO. Pineal expression of lypge in wildtype and otx5 MO emryos at 24 hpf. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)

Gene Expression Details
Gene Antibody Fish Conditions Stage Qualifier Anatomy Assay
ly6pge WT + MO1-otx5 standard conditions Prim-5 Not Detected epiphysis ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
WT + MO1-otx5 standard conditions Prim-5 epiphysis ly6pge expression absent, abnormal
Acknowledgments:
ZFIN wishes to thank the journal Gene for permission to reproduce figures from this article. Please note that this material may be protected by copyright.

Reprinted from Gene, 642, Ji, D., Wang, S., Li, M., Zhang, S., Li, H., Involvement of Lypge in the formation of eye and pineal gland in zebrafish, 491-497, Copyright (2017) with permission from Elsevier. Full text @ Gene
