Fig. 2

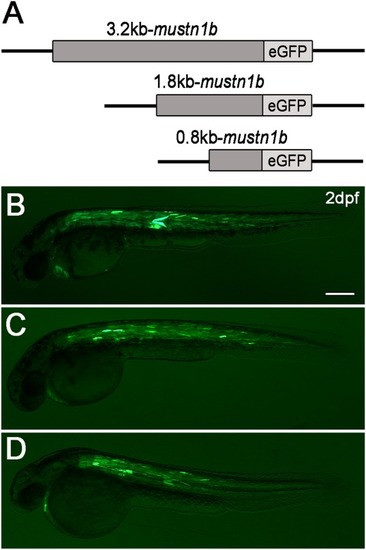

Transient expression analysis of mustn1b:eGFP in 2?dpf Zebrafish embryos. A: Schematic diagram of the Zebrafish eGFP reporter gene construct containing a mustn1b promoter region of 3.2?kb (P1), 1.8?kb (P2), 0.8?kb (P3), and 5??flanking sequences. B?D: eGFP expression in skeletal and cardiac muscles of Zebrafish embryos injected with mustn1b:eGFP constructs that contain the 3.2?kb (P1) (B), 1.8?kb (P2) (C), or 0.8?kb (P3) (D) mustn1b gene promoter and 5??flanking sequences, respectively. Scale bars?=?200??m.
