FIGURE

Fig. 5

ID

ZDB-FIG-171121-13

Publication

Ashikawa et al., 2016 - Activation of Sterol Regulatory Element Binding Factors by Fenofibrate and Gemfibrozil Stimulates Myelination in Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

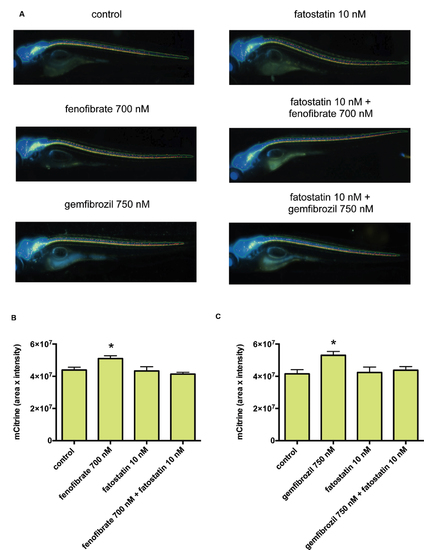

Fenofibrate and gemfibrozil increase mbp promoter-driven fluorescent reporter expression through activation of SREBFs. (A) Representative images from in vivo analysis of Tg (mbp: mCitrine, eno2: Cerulean) zebrafish incubated with or without the indicated concentrations of fenofibrate, gemfibrozil, and fatostatin. (B,C) Quantification of mCitrine fluorescence intensity within the area of Cerulean fluorescence. (B) Zebrafish were untreated (n = 28) or treated with fenofibrate (n = 27), fatostatin (n = 20), or fenofibrate and fatostatin (n = 5). ^∗p < 0.05 compared with control. (C) Zebrafish were untreated (n = 7) or treated with gemfibrozil (n = 7), fatostatin (n = 8), or gemfibrozil and fatostatin (n = 8). ^∗p < 0.05 compared with control.

Expression Data

Gene:	Citrine
Fish:	slc45a2^b4/b4; zf1046Tg; zf720Tg
Conditions:	chemical treatment by environment: fenofibrate chemical treatment by environment: gemfibrozil
Anatomical Term:	oligodendrocyte
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	slc45a2^b4/b4; zf1046Tg; zf720Tg
Conditions:	chemical treatment by environment: fenofibrate chemical treatment by environment: gemfibrozil
Observed In:	myelination oligodendrocyte
Stage:	Day 5

Phenotype Detail
