Fig. S10

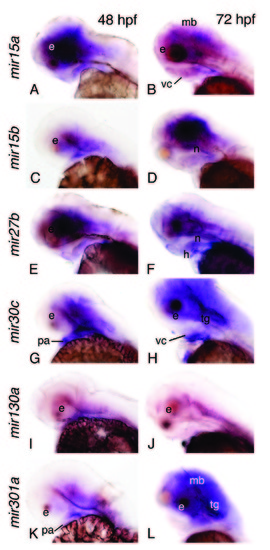

Whole mount ISH analysis miRNA expression in zebrafish embryos at 48 and 72 hpf. ISH analysis was performed using LNA probes. A, B. mir15a is expressed in the viscerocranium (vc) as well as the midbrain (mb) at 48 and 72 hpf. C, D. mir15b is expressed within the forming pharyngeal arch region at 48 hpf and expands to the neurocranium (n) and midbrain at 72 hpf. E, F. mir27b is expressed within the neurocranium, brain and heart (h) region at 48 and 72 hpf. G, H. mir30c expression is observed in the pharyngeal arches (pa) and brain at 48 hpf, and in the viscerocranium and trigeminal primordial (tg) at 72 hpf. I, J. mir130a is weakly expressed in the pharyngeal arch region at 48 hpf, and in the brain at 72 hpf. K, L. mir301a is expressed in the pharyngeal arches at 48 hpf and expands to the midbrain and trigeminal ganglia at 72 hpf. e, eye.

Expression Data

Genes:	dre-mir-15b dre-mir-30c mir27b
Fish:	AB
Anatomical Terms:	brain heart midbrain neurocranium pharyngeal arch splanchnocranium trigeminal ganglion
Stage Range:	Long-pec to Protruding-mouth
