ZFIN ID: ZDB-FIG-170123-32
Drummond et al., 2017 - The tbx2a/b transcription factors direct pronephros segmentation and corpuscle of Stannius formation in zebrafish. Developmental Biology   421(1):52-66 Full text @ Dev. Biol.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Fish:
Conditions:
Knockdown Reagent:
Anatomical Term:
Stage: Prim-5
PHENOTYPE:
Fish:
Conditions:
Knockdown Reagent:
Observed In:
Stage: Prim-5

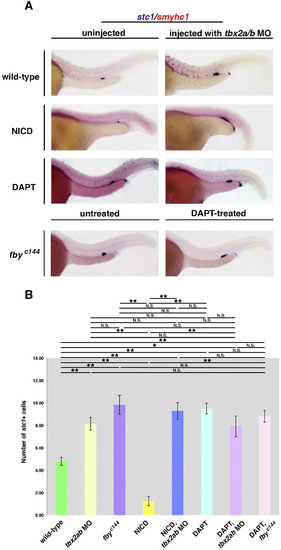

Fig. 9

Notch signaling also inhibits CS differentiation, but in an upstream or independent way than tbx2a/b. NICD embryos were heat-shocked at 15 ss to ectopically activate Notch signaling and fixed at 24 hpf. Post heat-shock induction, NICD embryos exhibited a dramatic reduction of the CS, while siblings showed normal CS clusters. To block Notch signaling, wild-type embryos were incubated in 100 ┬Ám DAPT/E3 solution from 90% epiboly to the 24 hpf stage. DAPT treatment resulted in a significant elevation in the number of CS cells. Heat-shocked NICD tbx2a/b morphants exhibited a significant expansion in the CS that was in contrast to the reduced CS observed in uninjected heat-shocked NICD siblings. The number of cells in the these CS clusters was not significantly different to the expansion seen in wild-type embryos injected with tbx2a/b MO. DAPT-treated tbx2a/b morphants and fbyc144 mutants exhibited an expansion in the CS that was not significantly different than wild-type embryos treated with DAPT alone. Together, these results suggest that tbx2a/b are acting in the same pathway, downstream of Notch to suppress the CS. Representative images were based on thorough examination of at least 15 embryos per treatment. (*p<0.05, **p<0.001, N.S.=not significant)..

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
stc1 TU standard conditions Prim-5 corpuscles of Stannius ISH
TU chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius ISH
TU + MO1-tbx2 standard conditions Prim-5 corpuscles of Stannius ISH
TU + MO1-tbx2 chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius ISH
kca3Tg; kca4Tg heat shock Prim-5 corpuscles of Stannius ISH
kca3Tg; kca4Tg + MO1-tbx2 heat shock Prim-5 corpuscles of Stannius ISH
tbx2bc144/c144 standard conditions Prim-5 corpuscles of Stannius ISH
tbx2bc144/c144 chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius ISH
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
TU chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
TU + MO1-tbx2 standard conditions Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
TU + MO1-tbx2 chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
kca3Tg; kca4Tg heat shock Prim-5 corpuscles of Stannius stc1 expression decreased distribution, abnormal
Prim-5 corpuscles of Stannius cell decreased amount, abnormal
kca3Tg; kca4Tg + MO1-tbx2 heat shock Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
tbx2bc144/c144 standard conditions Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
tbx2bc144/c144 chemical treatment by environment: DAPT Prim-5 corpuscles of Stannius stc1 expression increased distribution, abnormal
Prim-5 corpuscles of Stannius cell increased amount, abnormal
