FIGURE

Fig. 4

ID

ZDB-FIG-160608-8

Publication

Tokumasu et al., 2016 - ADAM12-deficient zebrafish exhibit retardation in body growth at the juvenile stage without developmental defects

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

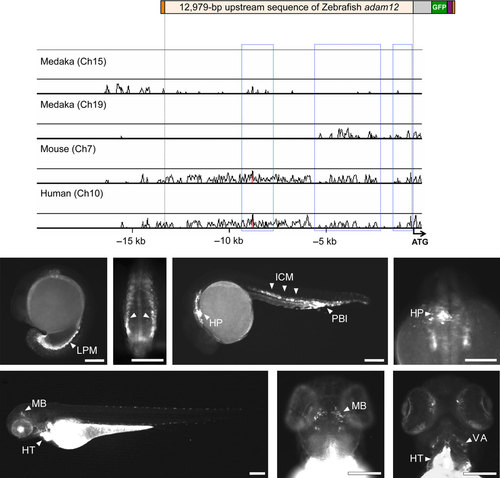

Generation of adam12:EGFP transgenic zebrafish. (A) The colored box is the DNA construction for generation of the adam12:EGFP transgenic zebrafish. A 12 979-bp upstream region of adam12 is connected to egfp (green) across an intron (gray). A SV40-polyA sequence (purple) is added to the tail of the EGFP. The adam12:EGFP cassette is carried by the Tol2 terminal sequences (orange). The waveforms indicate the comparison of the 12 979-bp with corresponding region of medaka, mouse and human. The 12 979-bp contains the conserved region that presumed to the regulatory elements for ADAM12 gene (blue dashed-squares). (B-D) Micrographs of fluorescence imaging of the adam12:EGFP transgenic zebrafish at 16-hpf (B), 24-hpf (C), and 3-dpf (D). B′ shows a dorsal view of the posterior LPM; C′ shows a dorsal view of the heart primordium; D′ shows a dorsal view of the cephalic nerve; and D′′ shows a ventral view of the heart. HP, heart primordium; HT, heart; ICM, intermediate cell mass; LPM, lateral plate mesoderm; MB, midbrain; PBI, posterior blood island; VA, ventral aorta. Scale bar: 200 µm.

Expression Data

Gene:	EGFP
Fish:	ko110Tg
Anatomical Terms:	blood island heart heart tube intermediate cell mass of mesoderm midbrain posterior lateral plate mesoderm ventral aorta
Stage Range:	14-19 somites to Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Growth Diff.
