Fig. 7

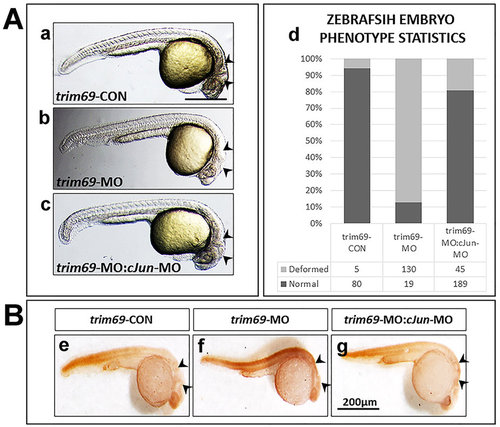

Loss of c-Jun rescued the deformed brain and apoptosis induced by trim69 knockdown.

(A) Loss of c-Jun rescued the deformed brain induced by trim69 knockdown. trim69-CON(a): control group; trim69-MO(b): trim69 knocking down; trim69-MO:c-Jun-MO(c): co-injection with trim69-MO and c-Jun-MO; black arrow indicates mid-hind brain boundary(MHB); scale bar: 200 µm; (d) Statistical analysis of the zebrafish embryo phenotype. Normal: the phenotype of the zebrafish embryo is normal; deformed: the phenotype of the zebrafish embryo phenotype is abnormal. (B) The examined apoptosis of zebrafish embryos by TUNEL assay. trim69-CON(e): control group; trim69-MO(f): trim69 knocking down; trim69-MO:cJun-MO(g): co-injection with trim69-MO and c-Jun-MO; black arrow indicates apoptotic cells; scale bar: 200 µm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-trim69 WT + MO1-trim69 + MO2-jun
Knockdown Reagents:	MO1-trim69 MO2-jun
Observed In:	apoptotic process brain brain development midbrain hindbrain boundary
Stage:	Prim-5
