Fig. S5

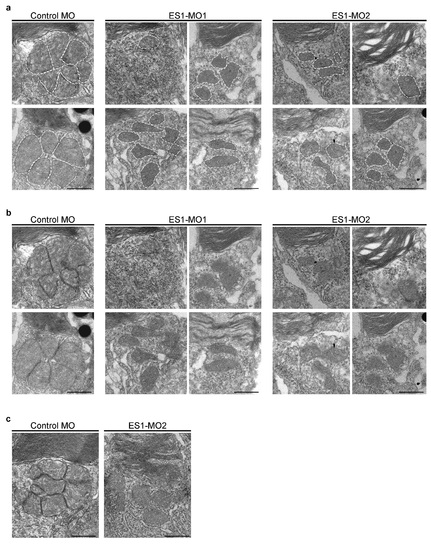

Morphology of cone mitochondria of MO-injected larvae. (a) Representative electron microscopic images of cone mitochondria of control MO-injected (left panels), ES1-MO1-injected (center panels) or ES1-MO2-injected (right panels) larvae at 4 dpf. Dashed lines outline each mitochondrion. (b) Images of a without dashed lines. (c) Images of Fig. 2e without dashed lines. Scale bars, 1 µm.
