Fig. 2

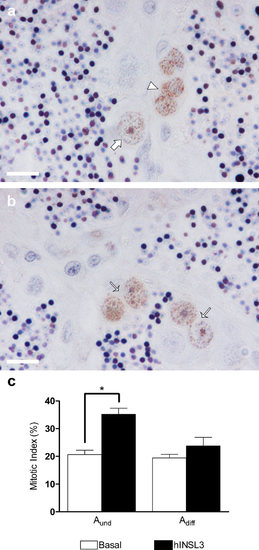

a, b Testis tissue sections showing BrdU-positive germ cells: type Aund (arrow), type Adiff (thin arrows) and type B (arrowhead) spermatogonia. Magnification ×1000. Bars 10 µm. c Mitotic indices of type Aund and Adiff spermatogonia after incubation for 7 days in the absence (Basal) and presence (hINSL3) of 100 ng hINSL3/ml. *Significant difference (P < 0.05) between treated and control. Results are presented as means ± SEM (n = 8) |
