ZFIN ID: ZDB-FIG-151203-12
Voelz et al., 2015 - A zebrafish larval model reveals early tissue-specific innate immune responses to Mucor circinelloides. Disease models & mechanisms   8(11):1375-88 Full text @ Dis. Model. Mech.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Genes:
Fish:
Condition:
Anatomical Terms:
Stage Range: Prim-25 to High-pec
PHENOTYPE:
Fish:
Condition:
Observed In:
Stage Range: Prim-25 to High-pec

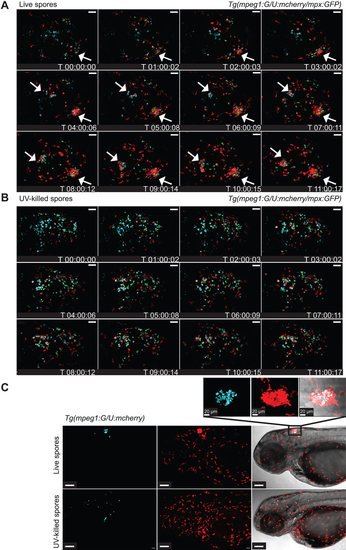

Fig. 3

Phagocytes accumulate at the site of live spore injection in the hindbrain infection model. (A) Macrophages and neutrophils accumulate around viable spores (z-stack: 15 sections every 7.3µm; scale bar: 40µm; see also Movie 2). (B) Significantly less macrophage and neutrophil clustering was observed in larvae injected with UV-killed spores (z-stack: 15 sections every 7.3µm; scale bar: 40µm; see also Movie 3). (C) Formation of clusters around viable spores was correlated with low levels of spore dissemination, whereas non-viable spores did disseminate efficiently throughout the fish (z-stacks: 30 sections every 10.35 and 9.25µm, respectively, scale bars: 50µm; zoomed in section: z-stack 31 sections every 1µm). Time is expressed as h:min:s starting at 1h after injection.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
GFP c264Tg; gl25Tg; i114Tg fungal treatment by injection: Mucor circinelloides Prim-25 to High-pec neutrophil IFL
mCherry c264Tg; gl25Tg fungal treatment by injection: Mucor circinelloides Prim-25 to High-pec macrophage IFL
c264Tg; gl25Tg; i114Tg fungal treatment by injection: Mucor circinelloides Prim-25 to High-pec macrophage IFL
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
c264Tg; gl25Tg fungal treatment by injection: Mucor circinelloides Prim-25 - High-pec macrophage accumulation hindbrain, abnormal
c264Tg; gl25Tg; i114Tg fungal treatment by injection: Mucor circinelloides Prim-25 - High-pec hindbrain macrophage increased amount, abnormal
Prim-25 - High-pec hindbrain neutrophil increased amount, abnormal
Prim-25 - High-pec macrophage accumulation hindbrain, abnormal
Prim-25 - High-pec neutrophil accumulation hindbrain, abnormal
