Fig. 3

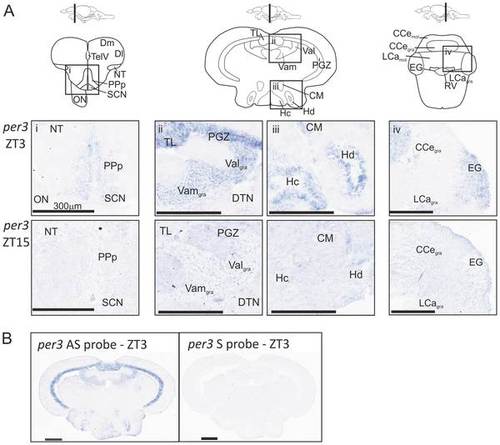

Regional per3 expression in the adult zebrafish brain.

Adult zebrafish were kept on a 14:10LD cycle and brains were collected at ZT3 and ZT15. In situ hybridization was performed to show expression of per3 mRNA. A) Schematics of the brain containing the diencephalon, mesencephalon and rhombencephalon are shown. At ZT3 there is expression of per3 in the i) PPp and SCN, ii) PGZ, TL, Val_gra and Vam_gra, iii) CM, Hc and Hd, iv) EG, CCe_gra, and LCa_gra. At ZT15 there is either low or undetectable levels of per3 in these same regions. B) The antisense (AS) probe shows the per3 expression and the sense (S) control shows the background signal.
