Fig. 6

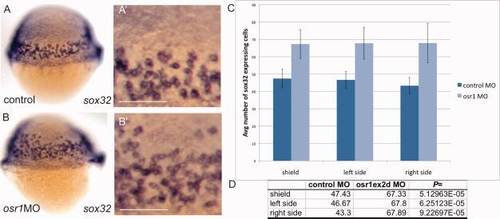

Loss of osr1 increases the number of sox32-expressing endoderm cells. sox32-expressing cells were counted in osr1 morphants and embryos injected with a control morpholino. A, B: Lateral views of control and osr1 morphant embryos, respectively (dorsal is on the right). Cells were counted in identical-sized windows (area = 0.05 mm²) (A′, B′) on both lateral sides and the dorsal side (shield). C: Average number of cells per 0.05mm² on each side. D: Welch′s t-test analysis indicates that osr1 morphant embryos show a significant increase in the number of sox32-expressing cells. n=7 (control); n=10 (osr1 MO). Scale bar in A′, B′ = 0.1 mm.

Expression Data

Gene:	sox32
Fish:	AB/TU AB/TU + MO2-osr1
Knockdown Reagent:	MO2-osr1
Anatomical Term:	presumptive endoderm
Stage:	Shield

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB/TU + MO2-osr1
Knockdown Reagent:	MO2-osr1
Observed In:	endodermal cell endodermal cell differentiation hypoblast
Stage:	Shield

Phenotype Detail
