Fig. 2

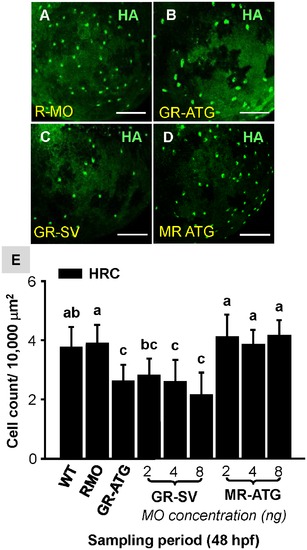

Effect of corticosteroid receptor gene knockdown on HRC number.

Zebrafish embryos at the 1~4 cell-stage were microinjected with glucocorticoid receptor ATG-MO (GR-ATG), GR-splice variant MO (GR-SV), mineralocorticoid receptor ATG-MO (MR-ATG), or Random-MO (RMO; control). Representative images of yolk-sac HRCs labeled with H⁺-ATPase (HA) in RMO (A), GR-ATG (B), GR-SV (C), and MR-ATG (D) morphants. HRC numbers are compared in (E). Values are presented as the mean ±s.d. (n = 10–12). ^abIndicates statistically significant differences (<0.05) between groups as determined by one-way ANOVA (Tukey’s pair-wise comparison). Scale bar: 100 μm (A–F).

Expression Data

Gene:	atp6v1ab
Fish:	WT WT + MO1-nr3c1 WT + MO2-nr3c1 WT + MO2-nr3c2
Knockdown Reagents:	MO1-nr3c1 MO2-nr3c1 MO2-nr3c2
Anatomical Term:	vH ionocyte
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT + MO1-nr3c1 WT + MO2-nr3c1 WT + MO2-nr3c2
Knockdown Reagents:	MO1-nr3c1 MO2-nr3c1 MO2-nr3c2
Observed In:	vH ionocyte
Stage:	Long-pec

Phenotype Detail
