Fig. 5

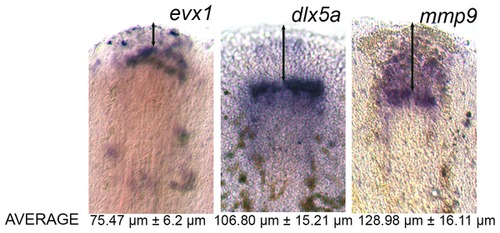

Expression domains of joint genes expressed during fin regeneration.

The double arrow identifies the measured distance between the expression domains and the distal tip of the fin. The measurement was taken from the third ray of each fin and the average and standard deviation (±) were calculated.
