Fig. S2

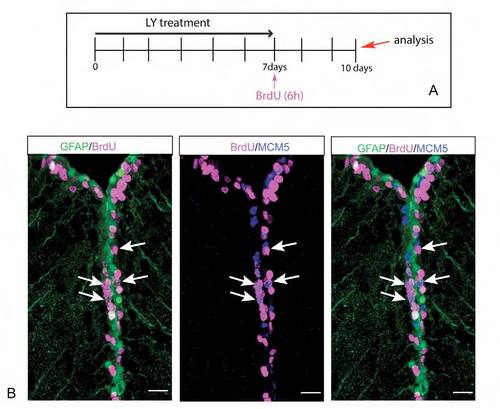

Sustained RG proliferation following LY treatment. (A) Experimental design. RG cells in S phase were labelled using BrdU at the end of a 7-day LY treatment and their fate was analyzed 3 days later. (B) Triple immunohistochemistry for GFP (RG, green), BrdU (magenta) and MCM5 (blue) in telencephalic cross-sections of a gfap:gfp transgenic fish. Some RG in proliferation at the end of the LY treatment (BrdU/GFP-positive cells) are still in proliferation 3 days later (white arrows, BrdU/GFP/MCM5-positive cells). Scale bar: 10 μm.
