FIGURE

Fig. 1

ID

ZDB-FIG-130822-34

Publication

Sah et al., 2013 - Ion channel-kinase TRPM7 is required for maintaining cardiac automaticity

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1

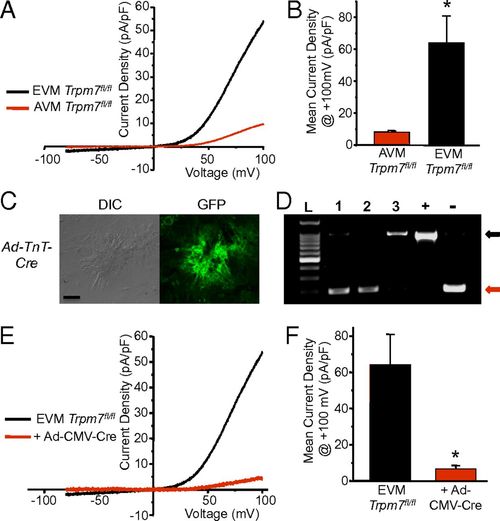

TRPM7 current in cultured murine embryonic ventricular myocytes. (A) Representative TRPM7 current measured in cultured EVM compared with AVM after full run-up. (B) Mean TRPM7 current density at +100 mV in AVM (I_Trpm7, _AVM = 8.3 ± 0.9 pA/pF, n = 5) compared with EVM (I_Trpm7, _EVM = 64.2 ± 16.7 pA/pF, n = 5). (C) Interference contrast (DIC, Left) and fluorescence GFP image (Right). (D) PCR across exon 17 from genomic DNA isolated from Trpm7^fl/fl EVM transduced with Ad-TnT-Cre (1), Ad-CMV-Cre (2), and Ad-CMV-Lacz (3), Trpm7^fl/fl fibroblasts (+), and Trpm7^fl/- tail (-). Black arrow, full-length exon 17. Red arrow, deleted exon 17. (E) Representative TRPM7 current measured in Trpm7^fl/fl EVM and Trpm7^fl/fl EVM 5 d after transduction with Ad-CMV-Cre. (F) Mean TRPM7 current density in Trpm7^fl/fl EVM treated with Ad-CMV-Cre (n = 3) compared with untreated Trpm7^fl/fl EVM (n = 5). *P < 0.05.
