Fig. S1

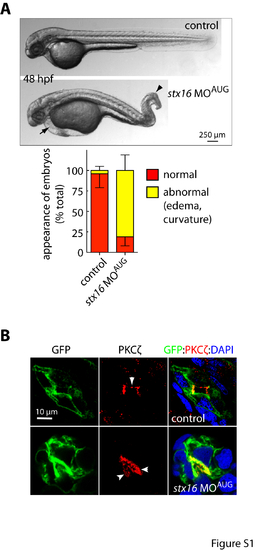

Depletion of Stx16 by stx16 MO^AUG causes abnormal body curvature and pronephric-duct formation in zebrafish. (A) Normarski images (lateral view) of control and stx16 MO^AUG-injected embryos at 48 hpf. Bar graph at right shows the percentage of embryos showing abnormalities (edema and curvature). Arrow: pericardial edema; arrowhead: body curvature. (B) Confocal images of transverse sections of Tg(cldnb:lynEGFP) embryos at 48 hpf, showing the expression of PKCζ on one side of pronephric duct. Arrowheads: lumens.

Expression Data

Gene:	prkcz
Antibody:	Ab1-prkcz
Fish:	zf106Tg zf106Tg + MO1-stx16 + MO4-tp53
Knockdown Reagents:	MO1-stx16 MO4-tp53
Anatomical Term:	pronephric duct apical plasma membrane
Stage:	Long-pec

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	zf106Tg + MO1-stx16 + MO4-tp53
Knockdown Reagents:	MO1-stx16 MO4-tp53
Observed In:	epithelial tube formation pericardium pronephric duct pronephric duct morphogenesis whole organism
Stage:	Long-pec

Phenotype Detail
