Fig. 5

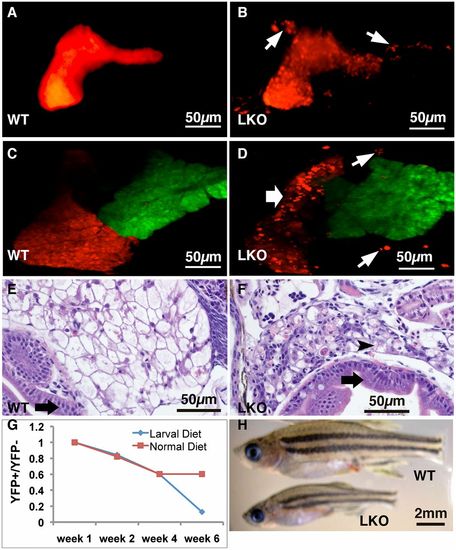

Phenotype of liver-specific supv3l1 inactivation. (A–D) Confocal images of the Left (A and B) and Right (C and D) sides of 21-d-old LiPan (A and C) and LiPan/supv3l1^LKO (B and D) fish showing detached hepatocytes (white arrows) (B and D) and smaller right liver lobe (white arrow) in supv3l1^LKO fish (D). (E and F) Histological analysis of wild-type (E) and supv3l1^LKO (F) fish indicate disorganized liver with dead cells (arrowhead) but normal intestinal lumen (black arrows) in supv3l1^LKO fish (F). (F) Survival curve of supv3l1^LKO fish (lens YFP⁺) compared with supv3l1^GtNf/GtNf siblings (lens YFP^-) during the first 6 wk of life. One group was fed a larval diet until 28 dpf followed by a juvenile diet (red) and the other group was kept on the larval diet (blue). (G) Photograph of a wild-type and a supv3l1^LKO mutant at 5 wk of age showing the smaller size of the mutant.

Expression Data

Gene:	DsRed
Fish:	gz15Tg
Anatomical Term:	liver
Stage:	Days 21-29

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	supv3l1^{vu497Gt/vu497Gt}; gz15Tg; s955Tg
Observed In:	hepatocyte liver whole organism
Stage:	Days 21-29
