Fig. 6

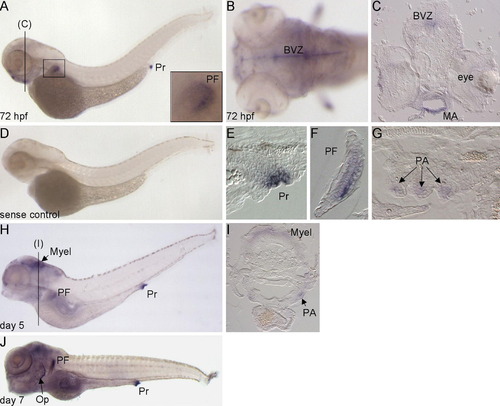

Expression pattern of mmp15b in larval stage embryos. (A and D) Lateral and dorsal (B) views of 72 hpf embryos with anterior to the left. Inset in panel (A) shows close-up of pectoral fin, PF. (C) Cross-section through the brain ventricular zone (BVZ) and mandibular arch (MA) of a 72 hpf embryo. (E–G) Sagittal plane sections of 72 hpf embryos showing mmp15b expression in the proctodeum (Pr), PF, and anterior pharyngeal arches, PA. (H and J) Lateral views of day 5 and 7 embryos with anterior to the left. (I) Cross-section through the myelencephalon (Myel) and PA of a day 5 embryo (position shown in panel H). Op, operculum.

Expression Data

Gene:	mmp15b
Fish:	WT
Anatomical Terms:	cloaca medulla oblongata opercular flap pectoral fin pharyngeal arch ventricular zone
Stage Range:	Protruding-mouth to Days 7-13
