Fig. 2

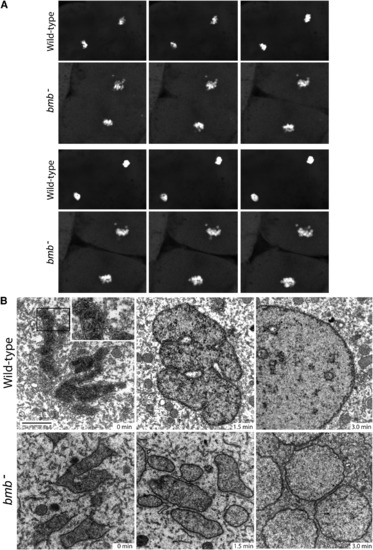

Nuclear Membrane Fusion Is Disrupted in bmb Mutants(A) Frames from time-lapse experiments at the telophase-interphase transition demonstrate that chromatin bodies normally coalesce in WT (top) but fail to do so in bmb (bottom). Note: six frames were selected (from Movies S1 and S2) to best align the sequence of events between WT and bmb at the telophase-interphase transition.(B) Electron microscopy of WT versus bmb at the telophase-interphase transition. Embryos at the 128-cell stage were fixed at 90 s intervals for transmission electron microscopy (TEM). Black bar, 2 microns. The inset in WT (0 min) is enlarged 2× to show the double-membrane nuclear envelope. For each time point, n = 2 embryos. Multiple cells from each embryo were examined in both WT and bmb.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	bmb^{p22atuz/p22atuz} (TL)
Observed In:	blastomere karyomere karyomere membrane fusion
Stage:	32-cell

Phenotype Detail
