ZFIN ID: ZDB-FIG-120314-4
Trowe et al., 1996 - Mutations disrupting the ordering and topographic mapping of axons in the retinotectal projection of the zebrafish, Danio rerio. Development (Cambridge, England)   123:439-450
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Observed In:
Stage: Day 5

Fig. 7

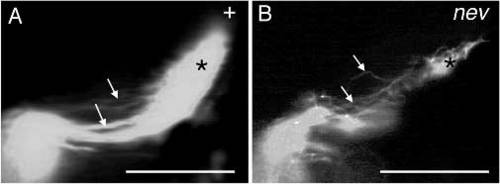

Nasoventral axons of a wild-type fish and of a nev mutant. Dorsal views of the tectal lobes, anterior is to the left. (A) In wildtype fish, nasoventral axons grow in straight, smoothly curved trajectories (arrows) on the dorsal side of the tectal lobe and terminate posterodorsally. (B) A nev mutant fish. Nasoventral axons terminate retinotopically (*), but they grow on tortous paths (arrows). m, melanophore. Scale bars, 0.1 mm.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
cyfip2tr230b/tr230b standard conditions Day 5 retinal ganglion cell axon displaced, abnormal
Day 5 retinal ganglion cell axon irregular spatial pattern, abnormal
