Fig. 2

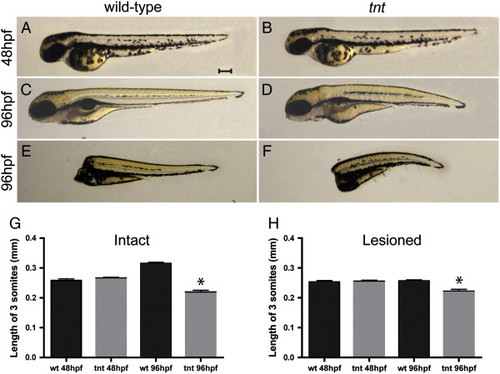

tnt larvae demonstrate paralysis and body shortening at 96 hpf, which can occur in the absence of brain input. Lateral views are shown of wild-type and tnt larvae and lesioned preparations. (A,B) Wild-type and tnt larvae are of similar length along the rostral–caudal axis at 48 hpf. Scale bar = 0.2 mm, applies to panels A–F. (C,D) At 96 hpf, tnt mutants are shorter than wild-type siblings. (E,F) At 96 hpf, tnt lesioned preparations, in which brain input was removed at 46 hpf, are shorter than wild-type, suggesting that the brain is not required for this aspect of the tnt phenotype. Quantification of a three-somite length is shown for (G) intact and (H) lesioned larvae (n = 8, p < 0.05).

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	slc1a2b^tk57/tk57
Observed In:	whole organism
Stage:	Day 4

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 362(2), McKeown, K.A., Moreno, R., Hall, V.L., Ribera, A.B., and Downes, G.B., Disruption of Eaat2b, a glutamate transporter, results in abnormal motor behaviors in developing zebrafish, 162-171, Copyright (2012) with permission from Elsevier. Full text @ Dev. Biol.
