Fig. 7
- ID
- ZDB-FIG-111007-32
- Publication
- Bricaud et al., 2011 - Balancing cell numbers during organogenesis: Six1a differentially affects neurons and sensory hair cells in the inner ear
- Other Figures
- All Figure Page
- Back to All Figure Page

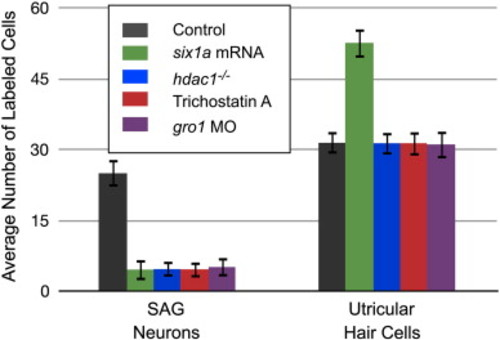

The function of Six1a as a transcriptional repressor in the neuronal lineage of the developing zebrafish inner ear likely involves Hdac1 and Gro1. Loss of function of either hdac1 or gro1 leads to a decrease in number of neurons similar to that observed when six1a is over-expressed. Effects of perturbing these molecules are restricted to the neuronal lineage. Average number of hair cells and neurons in 3 dpf utricular maculae and SAG. Hair cells and neurons were detected by HCS-1 and HuC immunolabeling, respectively, using confocal microscopy. Values represent mean cell counts (± standard deviation) with a sample size of 20 for each experiment. Statistical analyses were performed for both panels with Student′s t test; all comparisons were made to embryos injected with standard MO control (STD) or with six1a mRNA. Comparisons where P < 0.05 were considered statistically significant. |
| Fish: | |
|---|---|
| Knockdown Reagent: | |
| Observed In: | |
| Stage: | Protruding-mouth |
Reprinted from Developmental Biology, 357(1), Bricaud, O., and Collazo, A., Balancing cell numbers during organogenesis: Six1a differentially affects neurons and sensory hair cells in the inner ear, 191-201, Copyright (2011) with permission from Elsevier. Full text @ Dev. Biol.
