Fig. 7

ID

ZDB-FIG-110804-16

Publication

Kapsimali et al., 2011 - Fgf signaling controls pharyngeal taste bud formation through miR-200 and Delta-Notch activity

Other Figures

All Figure Page

Back to All Figure Page

Fig. 7

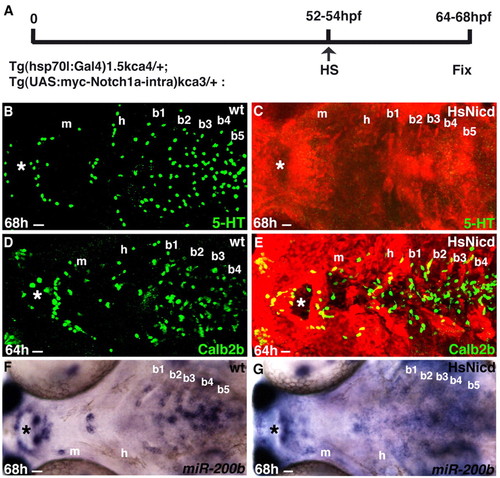

Activation of Notch signaling maintains taste bud Calb2b⁺ but not 5HT⁺ cells. (A) Heatshock treatment in HsNicd siblings. (B-G) Embryonic stage and scale bar are in the bottom left-hand corner and marker expression is in the bottom right-hand corner. Anterior is towards the left. Ventral views of whole-mounted larvae heads. Asterisks indicate taste buds in the lips. Note the absence of 5HT (C) and maintenance of Calb2b (E) and miR-200b (G) expression in the Hsnicd-expressing embryos compared with wild-type (heatshocked) siblings. Hsnicd embryos were identified by anti-myc (red, C,E) immunohistochemistry or genotyped after in situ hybridization (G). Scale bars: 12 μm. b1-b5, branchial arches 1-5; e, eye; h, hyoid arch; m, mandibular arch; nm, neuromast; oe, olfactory epithelium.

Expression Data

Genes:	calb2b mir200b
Antibodies:	Ab1-calb2 Ab1-serotonin
Fish:	WT kca3Tg/kca3Tg; kca4Tg/kca4Tg
Condition:	heat shock
Anatomical Term:	pharyngeal arch taste bud
Stage:	Pec-fin

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	kca3Tg/kca3Tg; kca4Tg/kca4Tg
Condition:	heat shock
Observed In:	Notch signaling pathway taste bud taste bud formation
Stage:	Pec-fin

Phenotype Detail
