Sedletcaia et al., 2011 - Heart chamber size in zebrafish is regulated redundantly by duplicated tbx2 genes. Developmental dynamics : an official publication of the American Association of Anatomists   240(6):1548-1557 Full text @ Dev. Dyn.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Prim-5 to Protruding-mouth

Fig. 4

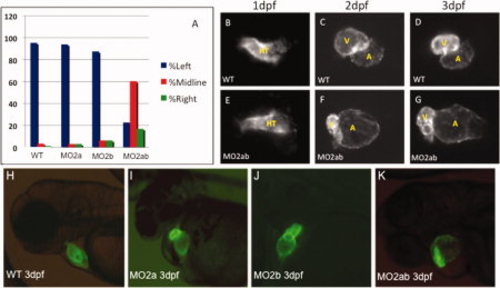

Chamber morphogenesis is disrupted in the tbx2ab morphants. A: Unlike single morphants, the tbx2ab double morphants show a heart tube jogging phenotype at 24 hours postfertilization (hpf). Wild-type and morphant embryos were evaluated at 24 hpf for the position of the primitive heart tube and scored as jogging left (normal, blue bars, right (green bars), or remaining midline (red bars). The Y axis indicates percentage of wild-type (WT), tbx2a morphant (MO2a), tbx2b morphant, or tbx2ab double morphant embryos. For each sample n = 50. B–G: Cardiac morphogenesis is visualized by imaging expression of the myl7:gfp transgenic reporter gene in wild-type (WT, top panels) or tbx2ab morphants (MO2ab, lower panels), at 1 dpf (B,E), 2 dpf (C,F) or 3 dpf (D,G). HT indicates the heart tube, whereas V marks the ventricle and A marks the atrium. Note that the heart tube shape is relatively normal at 1 dpf but is markedly altered in chamber morphology by 2 or 3 dpf. Each panel shows the heart of a representative embryo. For each sample, n > 100. The large atrium, small ventricle phenotype was scored in 110/172 tbx2ab morphants (64%). H–K: The tbx2ab double morphants have distinct alterations in chamber morphology. Shown are representative wild-type (A), tbx2a morphant (B), tbx2b morphant (C), or tbx2ab double morphant (D) embryos at 3 dpf in the myl7:gfp background. While hearts of the single morphants do not loop properly, due to emerging defects in atrioventricular canal (AVC) development at this stage, the chamber sizes, although variation was noted, are similar to those of wild-type embryos. In contrast, chamber sizes in the double morphant are significantly disturbed. Over 100 embryos were analyzed for each, taken from multiple independent experiments.

Gene Expression DetailsNo data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
AB/TU + MO1-tbx2 standard conditions Prim-5 heart jogging disrupted, abnormal
Prim-5 heart tube position, abnormal
twu26Tg + MO1-tbx2 standard conditions Long-pec atrium increased size, abnormal
Protruding-mouth atrium increased size, abnormal
Protruding-mouth cardiac ventricle decreased size, abnormal
twu26Tg + MO2-tbx2a standard conditions Protruding-mouth atrioventricular canal development disrupted, abnormal
Protruding-mouth heart looping disrupted, abnormal
twu26Tg + MO4-tbx2b standard conditions Protruding-mouth atrioventricular canal development disrupted, abnormal
Protruding-mouth heart looping disrupted, abnormal
