FIGURE

Fig. 4

ID
ZDB-FIG-110202-2
Publication
Froehlicher et al., 2009 - Estrogen receptor subtype beta2 is involved in neuromast development in zebrafish (Danio rerio) larvae
Other Figures
All Figure Page
Back to All Figure Page
Fig. 4

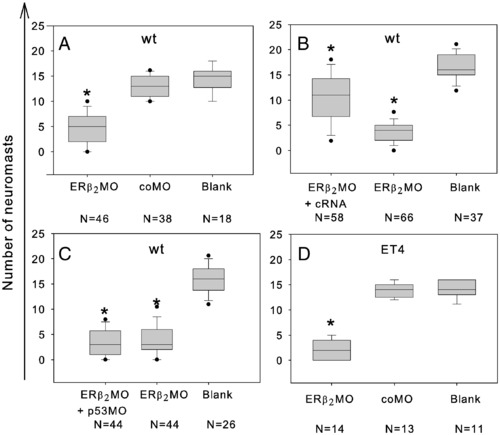

Number of neuromasts assessed using live staining (FM1-43) in wild-type (A-C) at 72 hpf and with GFP visualisation in transgenic line (ET4) (D). The boxes symbolize the interquartile space of each distribution; the median is indicated with a horizontal line within the box, and dots indicate extreme values (5th/95th percentile). The number of individuals recorded for elaboration of the box plots is indicated with N = number of individuals. Numbers of neuromasts are shown in (A) ERβ2 MO- or coMO-injected wild-type larvae (both MOs at 15 µM); (B) ERβ2 MO-injected wild-type larvae (15 µM) co-injected with cRNA (300 ng); (C) ERβ2 MO-injected wild-type larvae co-injected with p53MO (both at 15 µM). (D) ET4 larvae injected with ERβ2 MO or coMO (both at 15 µM). One-way ANOVA following the Tukey test were performed to test the differences between blank (uninjected) and injected embryos and significances were indicated with * when p ≤ 0.05.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage: Protruding-mouth

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 330(1), Froehlicher, M., Liedtke, A., Groh, K., Lopez-Schier, H., Neuhauss, S.C., Segner, H., and Eggen, R.I., Estrogen receptor subtype beta2 is involved in neuromast development in zebrafish (Danio rerio) larvae, 32-43, Copyright (2009) with permission from Elsevier. Full text @ Dev. Biol.
