Fig. 7

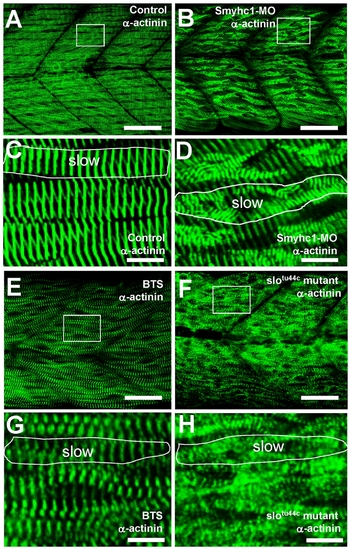

The effect of smyhc1 knockdown, BTS treatment or hsp90α1 mutation on Z body formation, and Z-line organization in skeletal muscles of zebrafish embryos. Anti-α-actinin antibody staining shows the Z-disk organization in control (A, C), smyhc1 knockdown (B, D), BTS-treated (E, G), or slotu44c mutant (F, H) embryos at 60 hpf. C, D, G and H are high magnifications of A (control), B (smyhc1 knockdown), E (BTS treated) and F (slotu44c mutant), respectively. Scale bar = 25 μm in A, B; 20 μm in E, F; 4 μm in C, D, G, H. |
