FIGURE

Fig. S6

ID

ZDB-FIG-090527-50

Publication

North et al., 2009 - Hematopoietic stem cell development is dependent on blood flow

Other Figures

All Figure Page

Back to All Figure Page

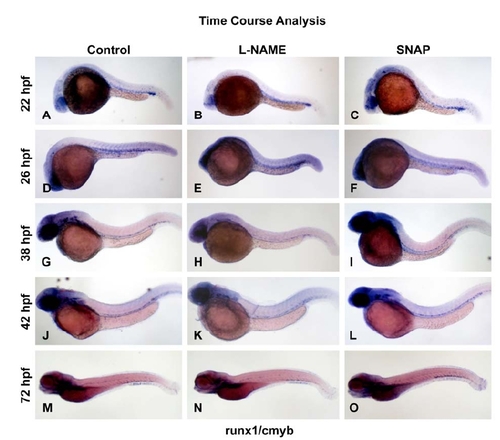

Fig. S6

Time course analysis reveals time-specific effect of NO modulation on HSCs.
(A-O) Embryos were exposed to L-NAME and SNAP from 10 somites until fixation (22 - 72 hpf).
(A-F) SNAP exposure does not increase the expression of HSC markers at early stages.
(G-O) nos inhibition by L-NAME does not cause a delay in HSC development that can be compensated for at later developmental stages.
