Fig. 8

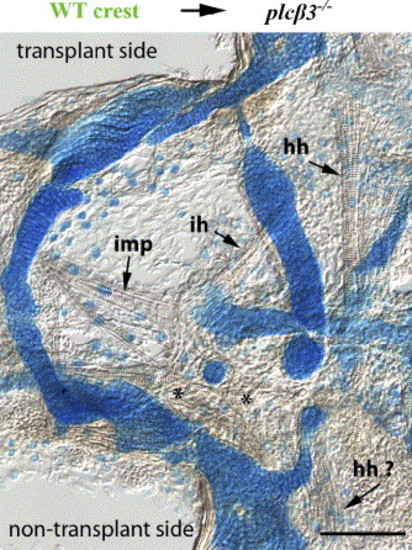

plcβ3 is required in cranial neural crest cells for ventral pharyngeal muscle patterning. Flat mount in Fig. 7D was subsequently imaged with DIC to show muscle patterning. On transplant side wild-type neural crest cells partially rescue patterning of several ventral arch muscles. On non-transplant side, muscle fibers are largely disorganized. Muscles are abbreviated as follows: intermandibularis posterior (imp), interhyal (ih), hypohyal (hh) ((Schilling and Kimmel, 1997). Asterisks (*) indicate disorganized muscle fibers on non-transplant side of plcβ3 homozygous host. Scale bar: 50 μm.
