Fig. 3

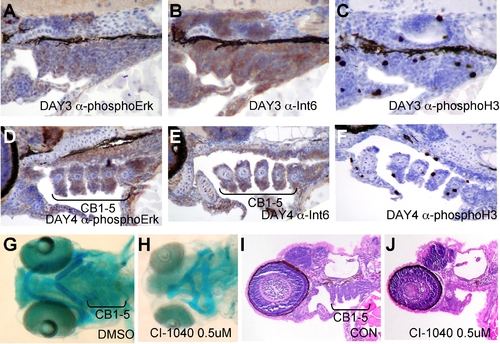

Int6 and phospho-Erk expression in the developing zebrafish embryo, and pharmacological inhibition of Mek alters ceratobrancial (CB) arches.(A–F). Immuno-histochemistry of Int6 and phospho-Erk in the developing craniofacial tissues, counter stained with hematoxylin, and phospho-histone H3 to show cycling cells. (G, H) Ventral whole mount views of Alcian blue stained pharyngeal cartilages show loss of ceratobrancial arches 1–5 and a reduction of Meckel's (M), palatoquadrate (PQ) and ceratohyal (CH) cartilages in 4 dpf embryos treated with 0.5 uM CI-1040. (I, J) Sections of 4 dpf embryos hematoxylin and eosin stained after 0.5 uM CI-1040 treatment reveals loss of CB arches 1–5 (brackets). E, Ethmoid plate; PC, Parachordal cartilage.

Expression Data

Gene:	eif3ea
Fish:	WT
Anatomical Terms:	ceratobranchial 1 cartilage ceratobranchial 2 cartilage ceratobranchial 3 cartilage ceratobranchial 4 cartilage ceratobranchial 5 cartilage unspecified
Stage Range:	Protruding-mouth to Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
