Fig. 1

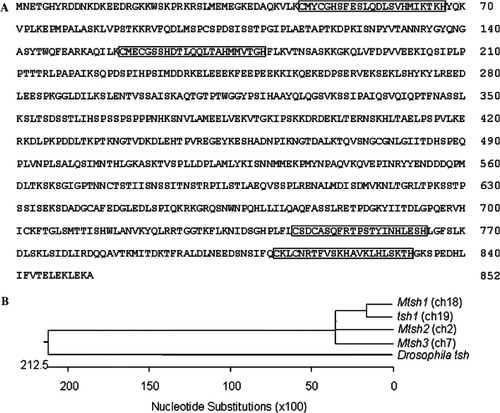

The zebrafish tsh1 gene encodes a zinc-finger transcription factor related to the Drosophila tsh. (A) Amino acid sequence of Tsh1. The zinc-finger motifs are boxed. (B) Phylogenetic tree of Drosophila tsh, zebrafish tsh1 and three mouse Tsh-like genes. The chromosomal location of each gene is indicated in parentheses. The phylogenetic tree was generated by use of Megalign of Lasergene 6 (DNAStar). The GenBank accession number for tsh, Mtsh1, Mtsh2 and Mtsh3 are: AAA28983, XM_888252, NM_080455, NM_172298, respectively. The scale at the bottom indicates total nucleotide substitutions between compared sequences.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 7(3), Wang, H., Lee, E.M., Sperber, S.M., Lin, S., Ekker, M., and Long, Q., Isolation and expression of zebrafish zinc-finger transcription factor gene tsh1, 318-322, Copyright (2007) with permission from Elsevier. Full text @ Gene Expr. Patterns
