FIGURE

Fig. 4

ID

ZDB-FIG-071001-27

Publication

Lee et al., 2006 - Blimp-1 is an essential component of the genetic program controlling development of the pectoral limb bud

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

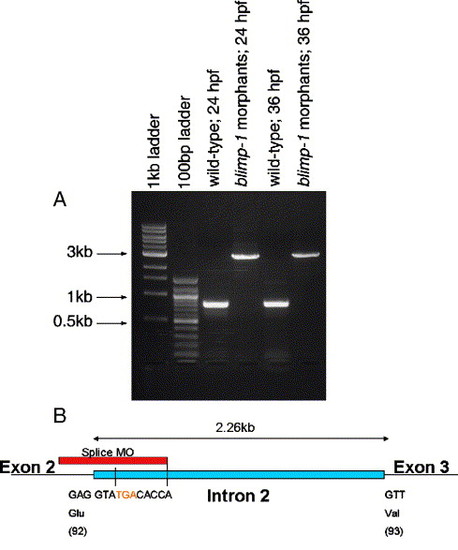

Splice junction targeted anti-blimp-1 MOs effectively block splicing of blimp-1 pre-mRNA. (A) RT-PCR of mRNA extracted from wild-type embryos and blimp-1 morphants, showing the expected 783 bp band in the wild-type lanes and an approximately 3 kb band in those of the morphants. The primer pair used for the PCR reaction amplifies across exons 1-5 (see Materials and methods). (B) Diagram illustrating the target site of the MO, at the junction between exon 2 and intron 2. The last codon of exon 2 and the first codon of exon 3, together with their corresponding amino acid, are indicated. The premature stop codon in the mis-spliced blimp-1 mRNA is highlighted in red.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 300(2), Lee, B.C., and Roy, S., Blimp-1 is an essential component of the genetic program controlling development of the pectoral limb bud, 623-634, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
