FIGURE

Fig. S6

ID
ZDB-FIG-070605-5
Publication
Nyholm et al., 2007 - The zebrafish zic2a-zic5 gene pair acts downstream of canonical Wnt signaling to control cell proliferation in the developing tectum
Other Figures
All Figure Page
Back to All Figure Page
Fig. S6

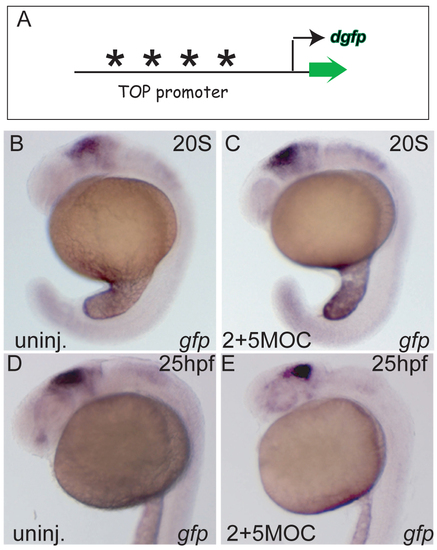

TOP:GFP expression in zic morphants. As zic1 was recently shown to regulate wnt genes (Merzdorf and Sive, 2006), we asked if Wnt signaling was affected in zic2a-zic5 morphants by assaying expression of a Wnt reporter transgene. This analysis, although not quantitative, suggested that Wnt signaling was not altered in zic morphants. (A) TOP:GFP transgene contains a wnt/β-catenin responsive synthetic promoter (TOP) composed of four consensus Lef-binding sites (blue stars) and a minimal promoter sequence, driving a destablized gfp reporter (Dorsky et al., 2002b). TOP:GFP transgenic embryos were injected with 2 MOC+5MOC (C,E), and gfp expression was compared with uninjected embryos (B,D) at 20-somites or at 25 hpf. (B,C) At 20-somites, TOP:GFP expression in morphants (n=24) was comparable to that in uninjected embryos (n=18). (D,E) At 25 hpf, the TOP:GFP expression domain was misshapen in morphants (n=20/82), probably as a result of morphological defects, as compared with controls (n=18). However, there was no significant expansion or reduction in TOP:GFP expression. All embryos are positioned in lateral view, with anterior to the left.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
