Fig. 2

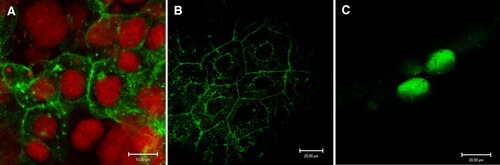

Localization of TACSTD protein. Zebrafish embryos were injected with myc fusion mRNAs, allowed to develop for 12 hr, and developed with an anti-myc antibody. A: Zebrafish tacstd-myc fusion mRNA was injected and embryonic cells were visualized under confocal microscopy; nuclei were labelled with propidium iodide (red) and the anti-myc antibody was detected with an Alexa fluorescent secondary antibody (green). B: Same as in A, but propidium iodide was not added. Note expression localized to membranes and to the perinuclear region. C: Injected mRNA corresponds to myc-tagged SKIP protein, a transcription factor localized to the nucleus.
