FIGURE SUMMARY
Title

Zebrafish Model for Screening Antiatherosclerosis Drugs

Authors
Han, J., Zhang, R., Zhang, X., Dong, J., Chen, M., Pan, Y., Liao, Z., Zhong, M., He, J., Wang, F., Yue, Y., Shang, J.
Source
Full text @ Oxid Med Cell Longev
Figure 1

Early symptoms of AS zebrafish. (a) Cholesterol accumulates in the blood vessels of AS zebrafish. The numbers of macrophages (b) and neutrophils (c) in the blood vessels of AS zebrafish. The mRNA expressions of vcam-1b (d), tnf-α (e), and il-6 (f) of 3 AS zebrafish. Representative images and bar graphs (mean ± SD) were expressed, n=4.

Figure 2

Disturbance of lipid metabolism and oxidative stress in early AS zebrafish. Effects of HCD, LPS, and HCD+LPS on the lipid level (a), TC (b), and TG (c) content of AS zebrafish. Effects of HCD, LPS, and HCD+LPS on the ROS activity (d), MDA content (e), and SOD activity (f) of AS zebrafish. Representative images and bar graphs (mean ± SD) were expressed, n=4.

Figure 3

Plaque formation of AS zebrafish. (a) The results of HE staining showed that plaques were formed in the blood vessels of the 3 AS zebrafish, causing vascular stenosis. (b) The results of EVG staining showed that the plaques of the 3 AS zebrafish all contained fibrous tissue. (c) The results of Oil red O staining showed that the plaques of HCD-AS zebrafish and HCD+LPS-AS zebrafish contained a large amount of lipids, while the lipid components of LPS-AS zebrafish plaques were few. Representative images were expressed, n=4.

Figure 4

Effects of atorvastatin, aspirin, and vitamin C on early symptoms of AS zebrafish. (a) Effects of atorvastatin, aspirin, and vitamin C on the cholesterol accumulation. (b) Effects of atorvastatin, aspirin, and vitamin C on the numbers of macrophages. Representative images were expressed, n=4.

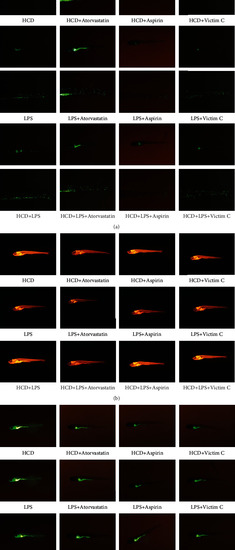

Figure 5

Effects of atorvastatin, aspirin, and vitamin C on inflammation, lipid metabolism, and oxidative stress in early AS zebrafish. (a) Effects of atorvastatin, aspirin, and vitamin C on the numbers of neutrophils. (b) Effects of atorvastatin, aspirin, and vitamin C on the lipid level. (c) Effects of atorvastatin, aspirin, and vitamin C on the ROS activity. Representative images were expressed, n=4.

Figure 6

HE staining to detect the effects of atorvastatin, aspirin, and vitamin C on AS zebrafish plaque formation. Representative images were expressed, n=4.

Figure 7

EVG staining to detect the effects of atorvastatin, aspirin, and vitamin C on fibrous tissue in AS zebrafish plaques. Representative images were expressed, n=4.

Figure 8

Oil red O staining to detect the effects of atorvastatin, aspirin, and vitamin C on lipids in AS zebrafish plaques. Representative images were expressed, n=4.
