FIGURE SUMMARY
- Title
-
Theabrownin triggers DNA damage to suppress human osteosarcoma U2OS cells by activating p53 signalling pathway
- Authors
- Jin, W., Zhou, L., Yan, B., Yan, L., Liu, F., Tong, P., Yu, W., Dong, X., Xie, L., Zhang, J., Xu, Y., Li, C., Yuan, Q., Shan, L., Efferth, T.
- Source
- Full text @ J. Cell. Mol. Med.

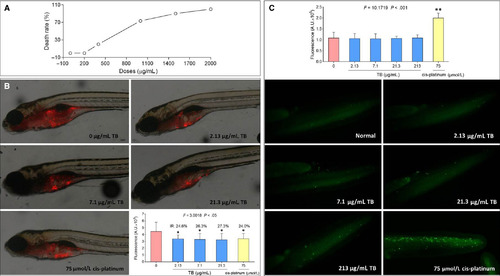

Effect of TB on U2OS‐xenotransplanted larval zebrafish and normal zebrafish. A, TB‐induced mortality curve between 3 and 4 dpf (n = 30). B, Visual observation of U2OS‐xenotransplanted zebrafish (4 dpf) upon treatment with TB or cis‐platinum, and the fluorescent area (red) represents the osteosarcoma tumour. C, Visual observation of normal zebrafish upon treatment with TB or cis‐platinum by AO staining, and the fluorescent spots (green) are apoptotic cells
PHENOTYPE:
|
