FIGURE SUMMARY
Title

Vascular remodeling is governed by a VEGFR3-dependent fluid shear stress set point

Authors
Baeyens, N., Nicoli, S., Coon, B.G., Ross, T.D., Van den Dries, K., Han, J., Lauridsen, H.M., Mejean, C.O., Eichmann, A., Thomas, J.L., Humphrey, J.D., Schwartz, M.A.
Source
Full text @ Elife

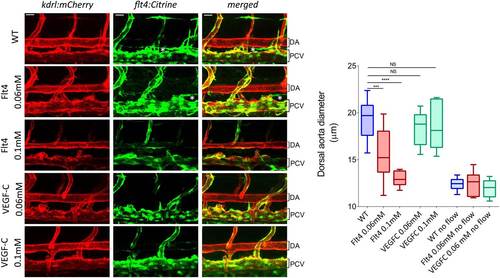

Fig. 6

Representative pictures of the dorsal aorta (DA), posterior cardinal vein (PCV) and thoracic duct (white *) at 72 hr post-fertilization (hpf) in wild type zebrafish embryos or embryos injected with Flt4 (VEGFR3) morpholino at 0.06 or 0.1 mM, or with VEGF-C morpholino at 0.06 or 0.1 mM. The mCherry reporter driven by the KDR (VEGFR2) promoter (kdrl:mCherry) is depicted in red and the citrine reporter driven by the Flt4 promoter (flt4:citrine) is depicted in green. Scale = 20 µm and applies to all pictures. n = 6-15 fishes for each condition, whiskers represents the minimum and maximum data point (NS: non-significant, ***: p < 0.001 and ****: p < 0.0001, ANOVA).
Fig. S 6.1

Representative pictures of the dorsal aorta (DA) and posterior cardinal vein (PCV) and developing thoracic duct (*) in wild type zebrafish embryos with a citrine reporter associated to Flt4 promoter (flt4:citrine) before and approximatively 2 hr after nifedipine treatment.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Elife
